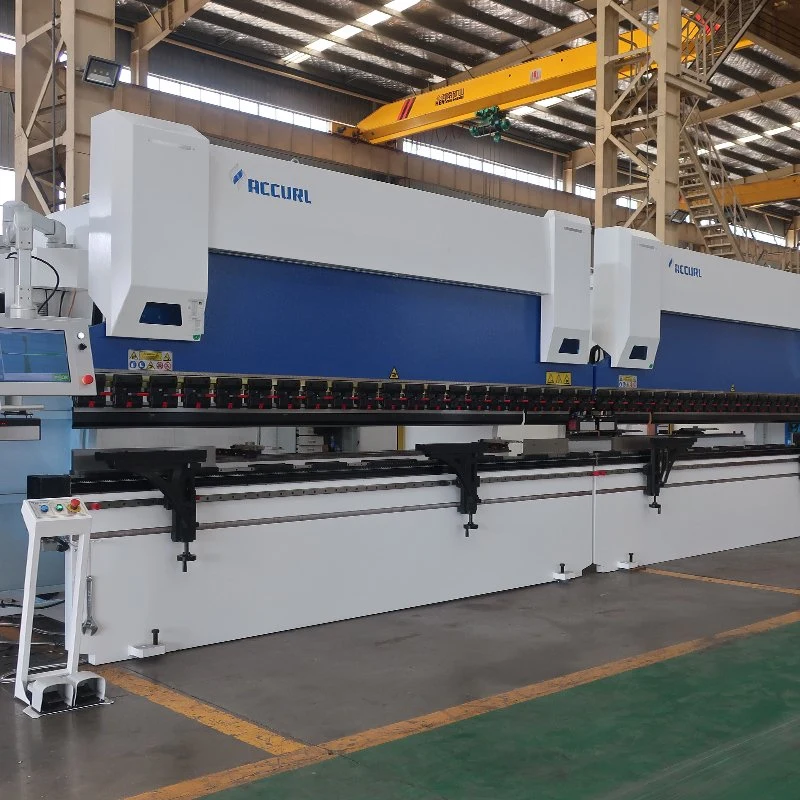

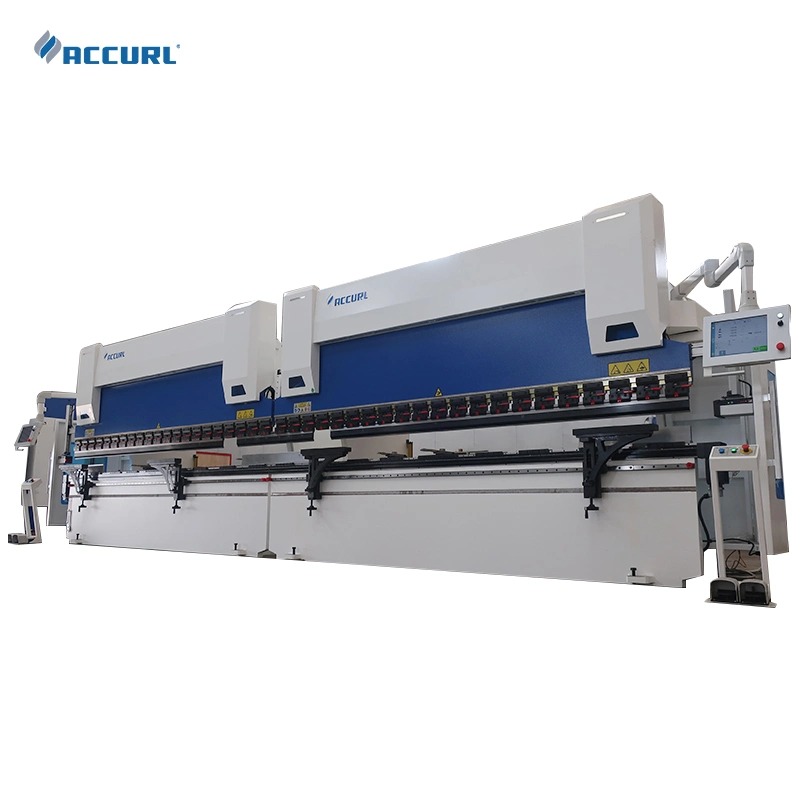

ACCURL® EURO-PRO Series CNC press brake features an automatic CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and a 3D capable graphical control unit to simulate bending sequences and collision points.
1. Provides a combination of performance, cost effectiveness and easy to use features
2. Outstanding Value! Best brake for the money on the market.
3. User friendly CNC control unit and software
4. Precise bending results
5. Tough construction with the same solid framework we use for all of ACCURL CNC Press Brake Manufacturers
6. Large daylight opening allows the entire length of the machine to be put to optimal use
7. Designed and built with the objective to help you achieve low cost manufacturing
8. Standard 6 axis X, R, Z1, Z2, Y1, Y2 CNC Press Brake Manufacturers
Standard Equipment:
1. Mono block, welded steel frame rigid to deflection and high tensile with ST44 A1 material.
2. 6 axes (Y1, Y2, X, R, Z1, Z2)
3. Throat depth 410 mm.
4. Back gauge system with X, R, Z1, Z2 axis driven by AC servo with colored graphics.
5. HOERBIGER servo hydraulic system.
6. CNC controlled motorized anti-deflection system.
7. Hardened and ground standard sectioned top and 4V-Die bottom tools (835 mm section).
8. Easy to clamp tool holding system with upper and lower tools.
9. Ergonomic user friendly, pendant control panel.
10. Back light safety guards (category-4)
11. Front side covers with safety switches.
12. Synchronization of Y1+Y2 axis provided by linear encoders with 0,01 mm tolerances.
13. Foot pedal suitable to CE regulation.
14. Sliding front support arms with T slot and mm/inch rulers.
15. Standard graphic controllers can be selected from: DelemDA66T 3D colour graphical touch screen controller, Cybelec Mod Eva 12 S
16. Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.
Delem DA66T CNC Control system:
1. 2D graphical touch screen programming mode.
2. 3D visualisation in simulation and production.
3. 17" high resolution colour TFT.
4. Windows applications compatible.
5. Delem Modusys compatibility. (module scalability and adaptivity)
6. USB, peripheral interfacing.
7. Open system architecture.
8. User specific application support within the controllers multitasking environment.
9. Sensor bending & correction interface.
Specification for CNC Press Brake
| Model(EURO PRO) | B1560 | B2580 | B32110 | B32135 | B32175 | B40175 | B32220 | ||
| Bending force | KN | 600 | 800 | 1100 | 1350 | 1750 | 1750 | 2200 | |
| Bending Length | mm | 1500 | 2500 | 3200 | 3200 | 3200 | 4200 | 3200 | |
| Between Columns | mm | 1100 | 2060 | 2700 | 2700 | 2700 | 3700 | 2700 | |
| Daylight | mm | 405 | 405 | 430 | 430 | 430 | 430 | 430 | |
| Slide Stroke | mm | 200 | 200 | 200 | 200 | 200 | 200 | 200 | |
| Throat Depth | mm | 370 | 400 | 400 | 400 | 400 | 400 | 400 | |
| Bolster Width | mm | 80 | 80 | 100 | 100 | 100 | 100 | 140 | |
| Down Speed | mm/min | 200 | 200 | 180 | 180 | 160 | 160 | 160 | |
| Pressing Speed | mm/min | 8 | 8 | 10 | 10 | 10 | 10 | 10 | |
| Return Speed | mm/min | 180 | 180 | 150 | 150 | 150 | 150 | 140 | |
| Back Gauge Stroke | mm | 500 | 600 | 800 | 800 | 800 | 800 | 800 | |
| Outline Size | L | mm | 1825 | 2825 | 3500 | 3550 | 3500 | 4500 | 3500 |
| W | mm | 1650 | 1650 | 1650 | 1650 | 1650 | 1650 | 1730 | |
| H | mm | 2300 | 2350 | 2650 | 2700 | 2700 | 2750 | 2900 | |
| Weight | kg | 4600 | 5600 | 8000 | 9500 | 10000 | 12000 | 13200 | |
The best bending results You can bend longer and deeper parts with standard Euro Pro B Series.
