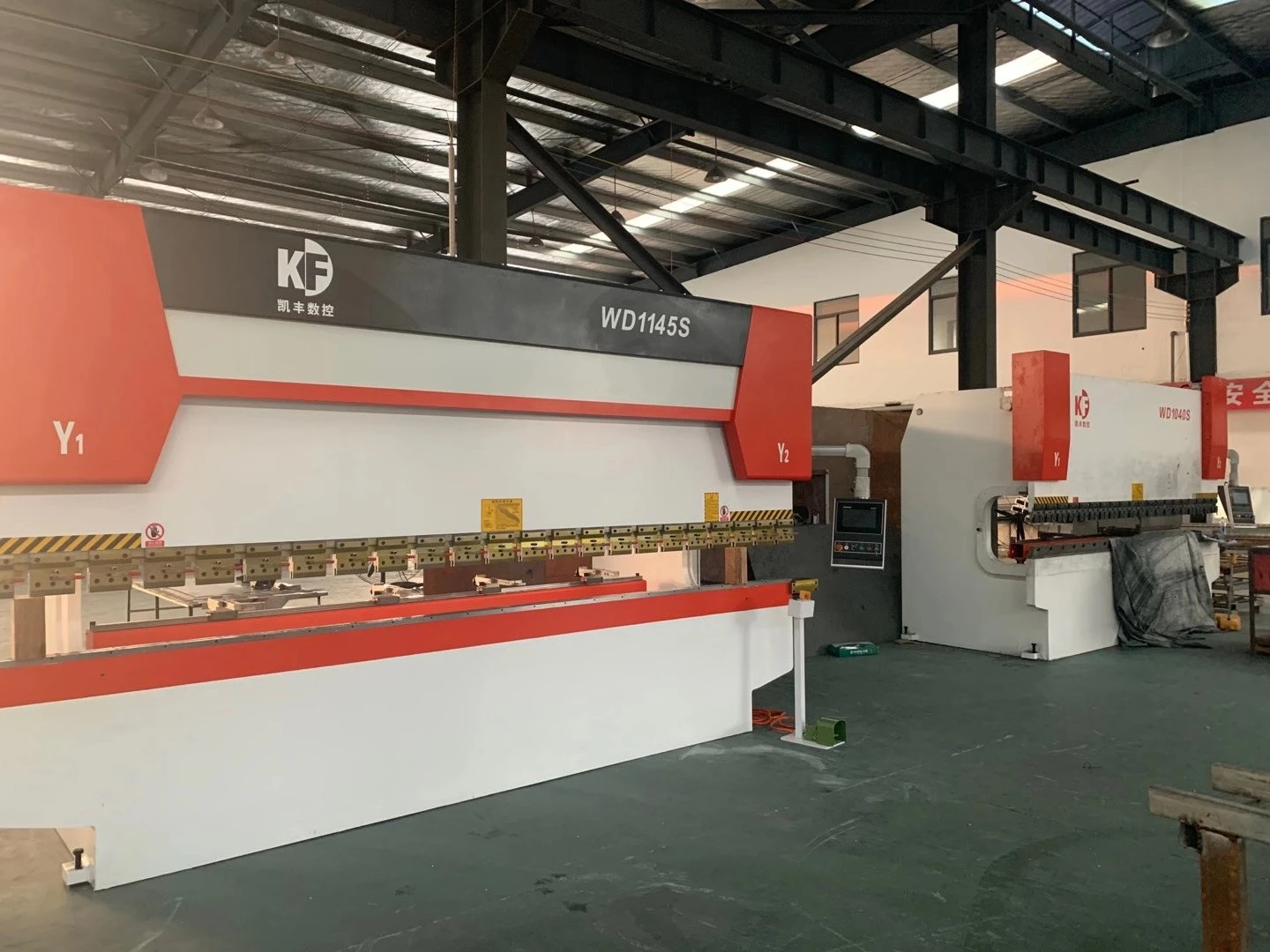

CNC Sheet Metal Hydraulic Servo Synchronous Bending Machine Sheet Metal Bending Machine

MAIN COMPONENTSCNC SystemDELEM-DA53 control system, SwitzerlandElectrical componentsSchneider, France / Omron, JapanGrating RulerFagor, SpainServo motor/Servo driveYaskawa, JapanFoot switchKF, ChinaHydraulic System/(Assembly)HOERBIGER, GermanyBall Screw/ Linear guideHIWIN/PMI/PYM from TaiwanSealsWalka, JapanSTANDARD CONFIGU

Featured Products



CNC Metal Sheet Hydraulic Servo Synchronized Plate Bending Machine Press Brake for Sheet Metal

MAIN COMPONENTS

CNC SystemDELEM-DA53 control system, Switzerland
Electrical componentsSchneider, France / Omron, Japan
Grating RulerFagor, Spain
Servo motor/Servo driveYaskawa, Japan
Foot switchKF, China
Hydraulic System/(Assembly)HOERBIGER, Germany
Ball Screw/ Linear guideHIWIN/PMI/PYM from Taiwan
SealsWalka, Japan


STANDARD CONFIGURATION

  • Integrated into the modern aesthetic concepts of new industrial design, high quality production process, simple and generous appearance.
  • The latest high frequency response hydraulic control technology, faster speed, high efficiency and more stable precision.
  • Electric hydraulic servo system, full loop controlling the synchronization of the upper beam.
  • Quip with VILA automatically crowning device on worktable and deformation compensation device on throat to make sure bending depth and precision.
  • Optimizing the validation for the treatment frame and rigidity of whole machine .researching and applying the hydraulic compensation structure ensure precision bending processing.

TECHNICAL SPECIFICATION

Model:UnitWD100-4000
Control Axis 4 (Y1, Y2, X, R)
Bending forceTon100
Bending lengthmm4000
Distance between columnsmm3400
Strokemm200
Throat Depthmm550
Open Heightmm520

WORKING SPEED:
Fast speedmm/sec180
Working speedmm/sec9
Return speedmm/sec100~180

CAPACITY:
Hydraulic oil standard/#46 Anti-wear hydraulic oil
Overall dimensionsmm4220*1615*2710
Power supply 380V/7.5KW
(As customer requirement)
Weight(Approx)T10.5

STRUCTURE CHARACTERISTICS AND STANDARD FEATURES
The frame, combined structure, has been heated processed and highly frequently vibrated.  Guarantee the whole precision, rigidity, excellent torsion and stability of the machine. The thick working table plate and ram give the assembly high rigidity. The linear and angle of the finished plate are the same.

CNC Metal Sheet Hydraulic Servo Synchronized Plate Bending Machine Press Brake for Sheet Metal
Processing Steps
CNC Metal Sheet Hydraulic Servo Synchronized Plate Bending Machine Press Brake for Sheet Metal

Exhibitions
CNC Metal Sheet Hydraulic Servo Synchronized Plate Bending Machine Press Brake for Sheet Metal

FAQ:

 1. Delivery time:
30-45 days according to different type.
2. Installation and commissioning time:
About 7 days.
3. Installation and commissioning issue:
We will send Kaifeng technicians to help with machine installation and commissioning, customer pays for round-trip airfare, local accommodation expenses.
4. Warranty time:

1 year after installation.
5. Payment term:

30% as prepayment balance 70% before delivery or L/C at sight.
6. We supply full English documents:

Including general installation drawings, pit design drawings, manual book, electric wiring diagram, electric manual book and maintenance book, etc.

WHY CHOOSE US?

1. China famous brand & top quality supplier.
2. Professional technical & service team.
3. Machine exported to many countries all over the world.
4. All the machine parts are international brand, quality guaranteed.
5. Customize & flexible products and service.

Welcome to visit our factory in Jinan!
